| Item Name | Take Apart Motor Box Hinge 90X50mm |
|---|---|
| Part no. | 30107R, 30107L |
| Size | 90x50mm |
| Length(mm) | 90 |
| Width(mm) | 50 |
| Height(mm) | 17 |
| Thickness(mm) | 5 |
| Hole Dia.(mm) | 5.2 |
| Pin Dia.(mm) | 10 |
| Material | made in stainless steel 316 |
| Other | precision casted |
| Remark | mirror polished |

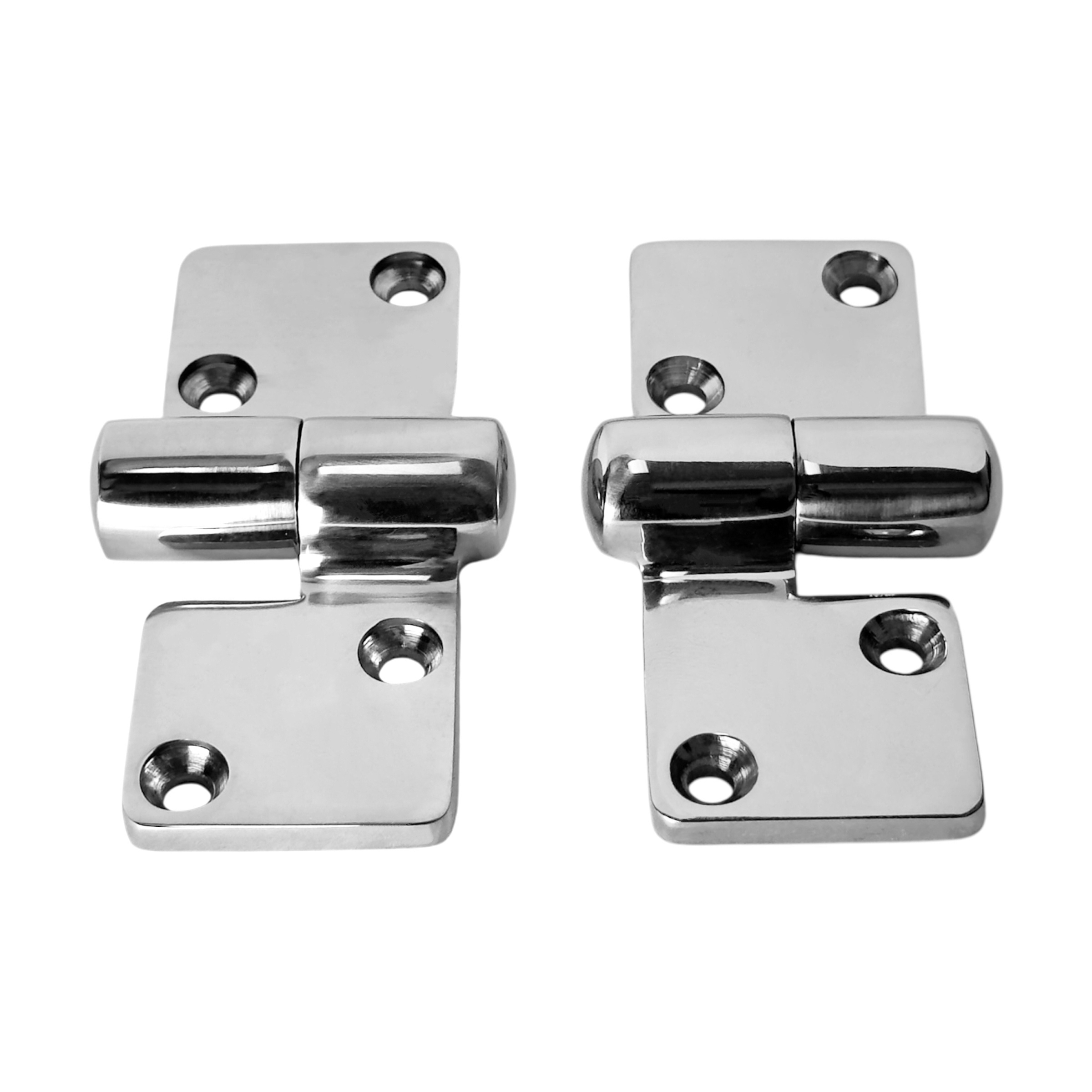

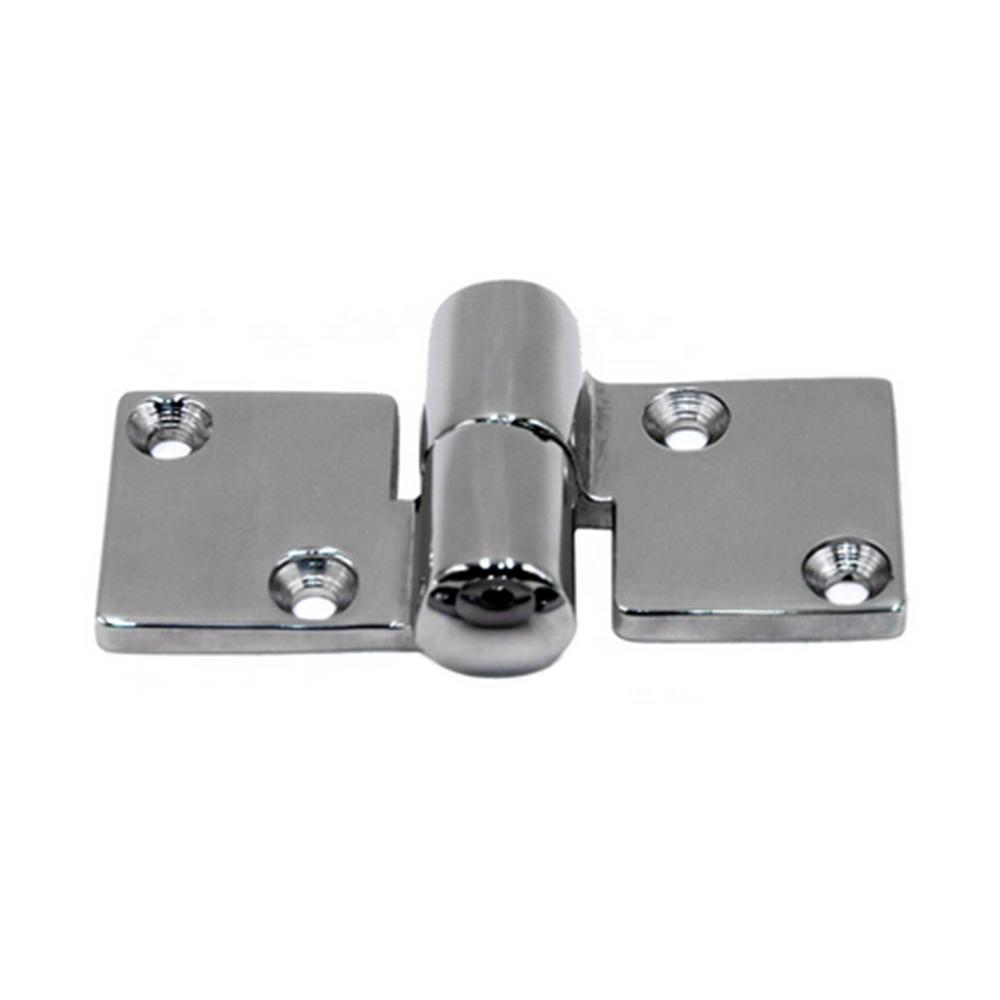

Stainless Steel 316 Take Apart Motor Box Hinge 90x50mm
- length 90mm
- width 50mm

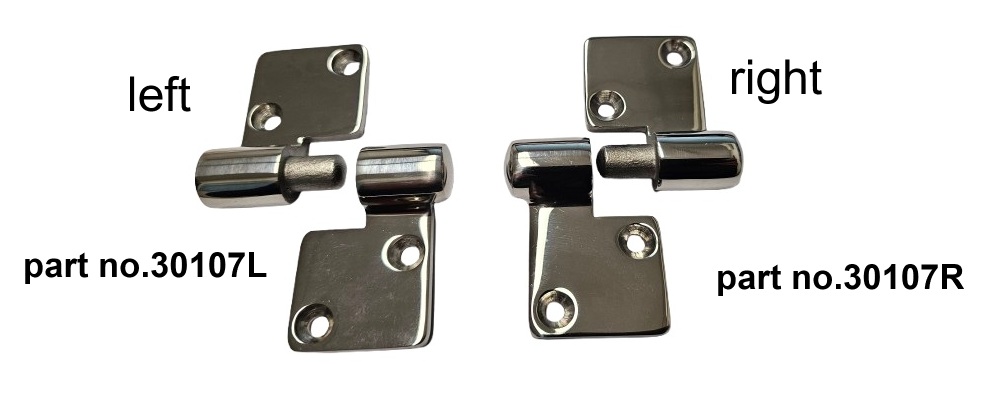

- right side (part no.30107R), left side(part no.30107L)
